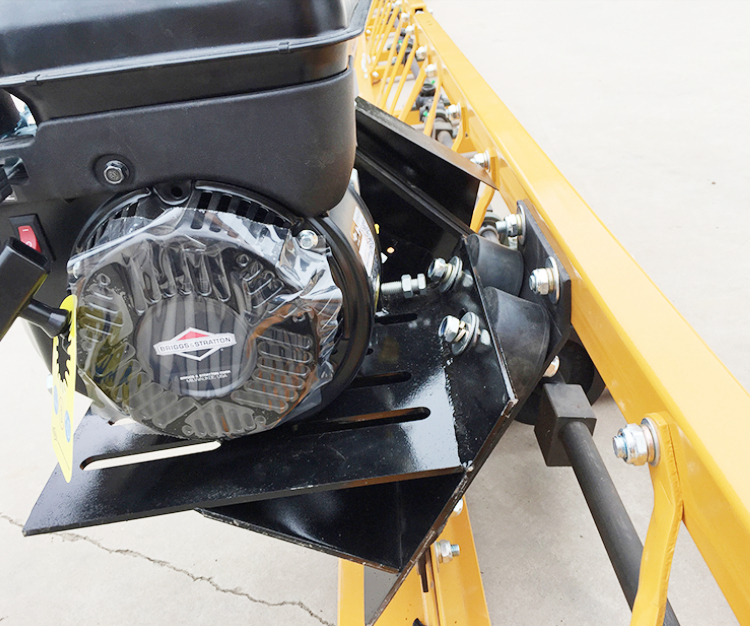

Frame Type Concrete Leveling Machine
Mainly used for vibration and leveling of concrete road.Usually be used in bridge and township,frame can be assembled freely,suitable for pavement construction of different width.It is a new equipment for roads,squares and modern factory building.And it is a traditional paver upgrading products.
Product selling point：
1. Detachable free combination design,frame fast docking,save time.
2. The overall frame adopts cold-rolled plate,aseismatic,won't be deformation.

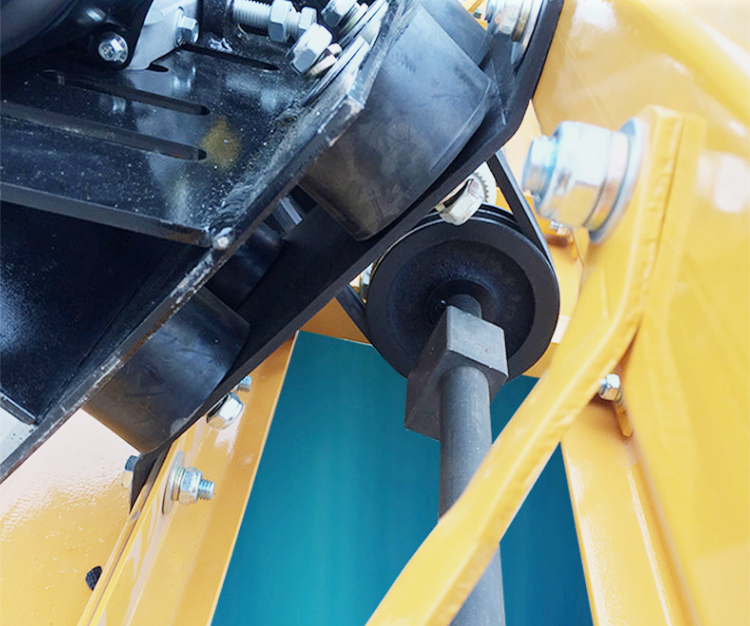

3. A cardan connection between a single node.
4. Adopt imported bearing,maintenance free,long service life.
5. Frame can arched 5 to 10 degree.
6.Removable and free combination design,greatly reduces the maintenance and transportation cost.
Product parameter：
|
Model |
B55 |
B65 |
B90 |
B130 |
|
Power |
5.5HP |
6.5HP |
9HP |
13HP |
|
Working width |
5000mm(max) |
7000mm(max) |
9000mm(max) |
16000mm(max) |
|
Working depth |
260mm |
260mm |
260mm |
260mm |
|
Frequency |
70HZ |
70HZ |
70HZ |
70HZ |
|
Standard single section |
1000/2000mm |
1000/2000mm |
1000/2000mm |
1000/2000mm |
|
Mode of action |
Hand walking |
Hand walking |
Hand walking |
Hand walking |
