Covering More Than 50 Countries and Regions Around the World

Light Weight, Low Center of Gravity, Fast Discharge, Long Life

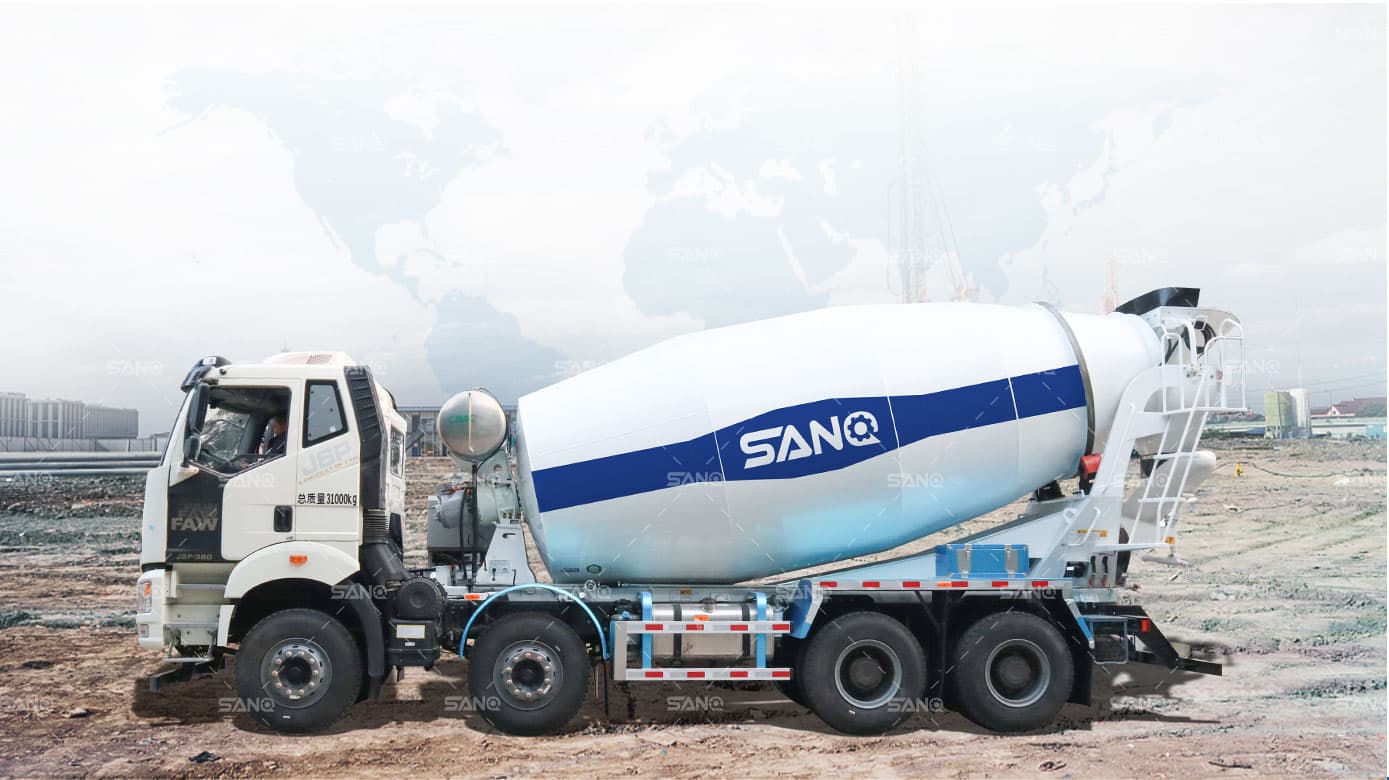

SANQ Concrete Mixer Truck

The Drum Body Follows the European and American Popular Style, and the Vehicle is Unique and Beautiful in Shape.

Covering More Than 50 Countries and Regions Around the World

SANQ Concrete Mixer Truck Has Advantages of Light Weight, Low Center of Gravity, Fast Discharging and Long Service Life.

Chassis Adopts the Dedicated Chassis for Mixer Truck From Various Manufacturers at Home and Abroad.

The Drum Body Follows the European and American Popular Style, and the Vehicle is Unique and Beautiful in Shape.

If Drum Volume is Same, the Self-weight is 100-300kg Lighter Than Other Similar Products.

If Vehicle Weight is Same, the Effective Volume of the Drum is 0.3-0.5m3 Larger Than Other Similar Products.

✔

□

□

□

□

□

✔

✔

✔

✔

Laser Tube Cutting Equipment

Fully Automatic Laser Blanking has the Features of Fast Cutting Speed, High Precision, Stable Performance and High Cost Performance. the Unique Design of Automatic Loading and Unloading System Improves Efficiency.

Welding Robot

Automatic Welding Production Line, Welding Robot and Auxiliary Welding Equipment Instead of Manual Welding. The Industry's First overall Dust Removal Scheme, Reaching the Environmental Protection A-Level Standard. The Automation Rate of the Whole Line Has Increased By 65% Compared With Before, and the Production Efficiency Has Increased By 26%.

Shot Blasting Equipment

The Equipment Removes Impurities Such as Rust and Scale on the Surface of Components, Increasing the Surface Hardness and Roughness, And Improving The Adhesion of the Coating.

Pre-processing Room

Powder Curing Room

Forced Cooling Room for Components

The Surface of Components Is Cleaned, and Meanwhile, a Nano-Scale Layer of Ceramic Anti-Rust is Formed on the Surface of Components Through Chemical Spraying, Which Improves the Adhesion Between Powder and Components, and Enhances Overall Anti-Corrosion.

Hot Air Bakes the Components After Spraying and Filming in the Pretreatment to Remove Moisture and Prevent the Occurrence of Corrosion Events During the Transfer Process.

Drying Room

Powder Coating Equipment

According to Classic Adsorption Principle, Atomized Powder Coating is Adsorbed on the Surface of Components to Form a Uniform Powder Coating Through New Laser Profile Scanning Technology.

Powder Attached to the Surface of Components is Baked at a High Temperature of 220°C to Melt, Level and Solidify to Form a Smooth and Hard Coating, So That The Surface of Components Has Stronger Impact Resistance and Corrosion Resistance.

The Assembly Line Includes AGV Intelligent Transfer System, Ground Tow Chain Conveying System, and Plate Chain Conveying Vehicle Assembly System. It Adopts Single Unit Flow and Pulling Mode. Combined With MES System, Each Link Operation can be Real Time Monitored to Ensure The Continuous and Efficient Operation of the Whole Line.

It Ensures High Efficient and Automatic Transfer of Components Between Stations, and Realizes Perfect Combination of Production Planning and Actual Production Through MES System.

The Room is Equipped With a Double Cooling System, and Components are Forced to Cool Down Through Axial Fan and Fan, so That the Surface Temperature of Components Drop Rapidly to Below 50°C to Meet the Subsequent Production Needs.

Assembly Process

Automatic Transfer System

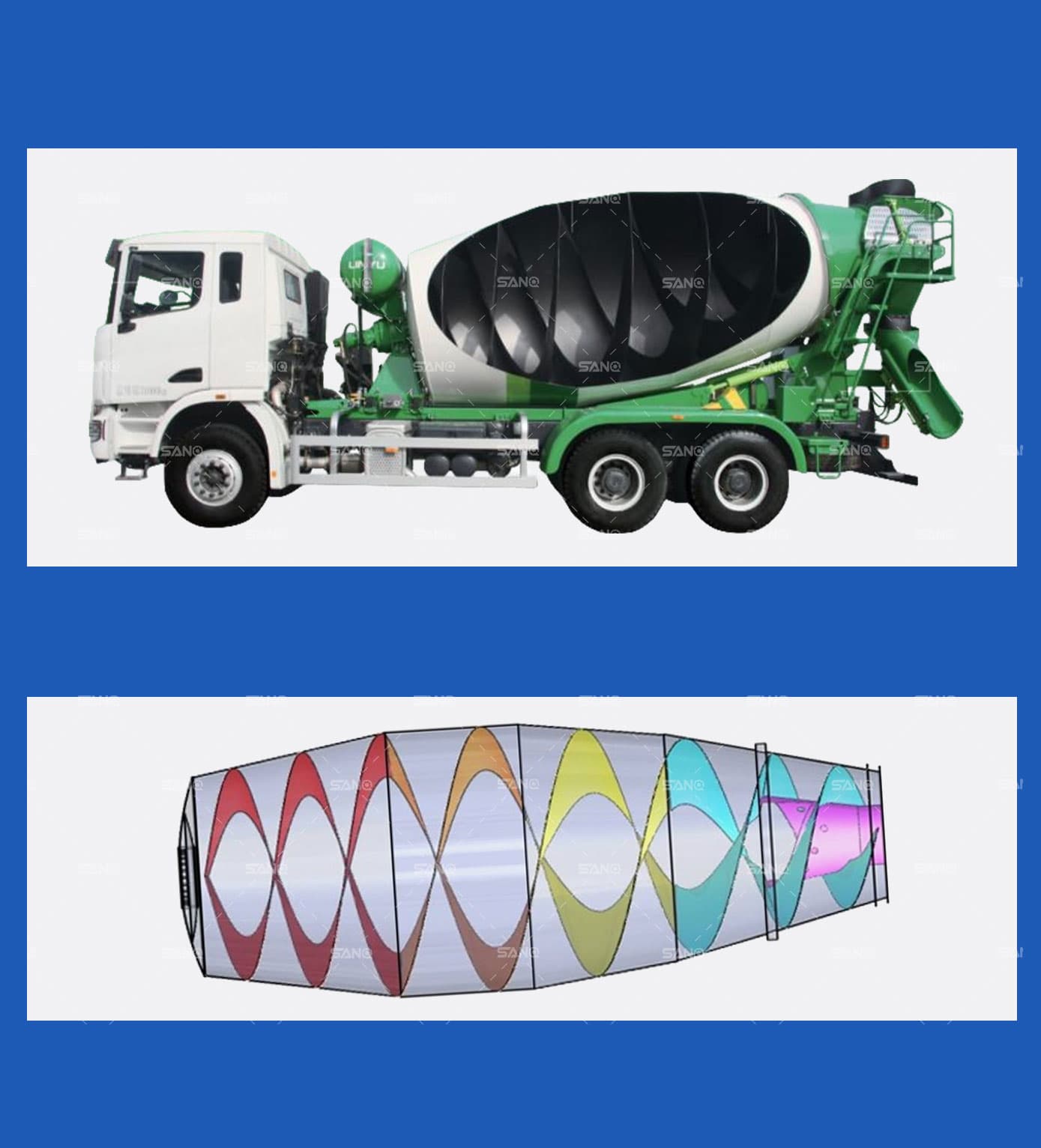

Tank Advantage

■ Multiphase Agitation, More Practical. The Blade Adopts "Modified Logarithmic Spiral Curve" to Achieve Multi-Phase Three-Dimensional Agitation. The Design Has Obtained a National Patent. This Design Makes Feeding and Discharging Fast, Concrete With Good Homogeneity, No Material Accumulation, and a Residual Rate of Less Than 0.5%.

■ The Drum Adopts an Innovative Design Scheme With Lower Center of Gravity and Larger Capacity. the Material can Use Customized Low-Alloy High-Strength Structural Steel, High-Strength Steel, High-Performance Wear-Resistant Steel, and Service Life is Twice of Ordinary Manufacturers.

Cases

Country: AFRICA

Project Information: Building

Arrival time: 2022/8

Delivery Time: 2022/7
