Detailed Information

Trolleying Mechanism

Variable frequency speed regulation, stable and reliable starting and braking Low maintenance rate gear reducer The operation efficiency is 10% higher than that of ordinary trolleybus.

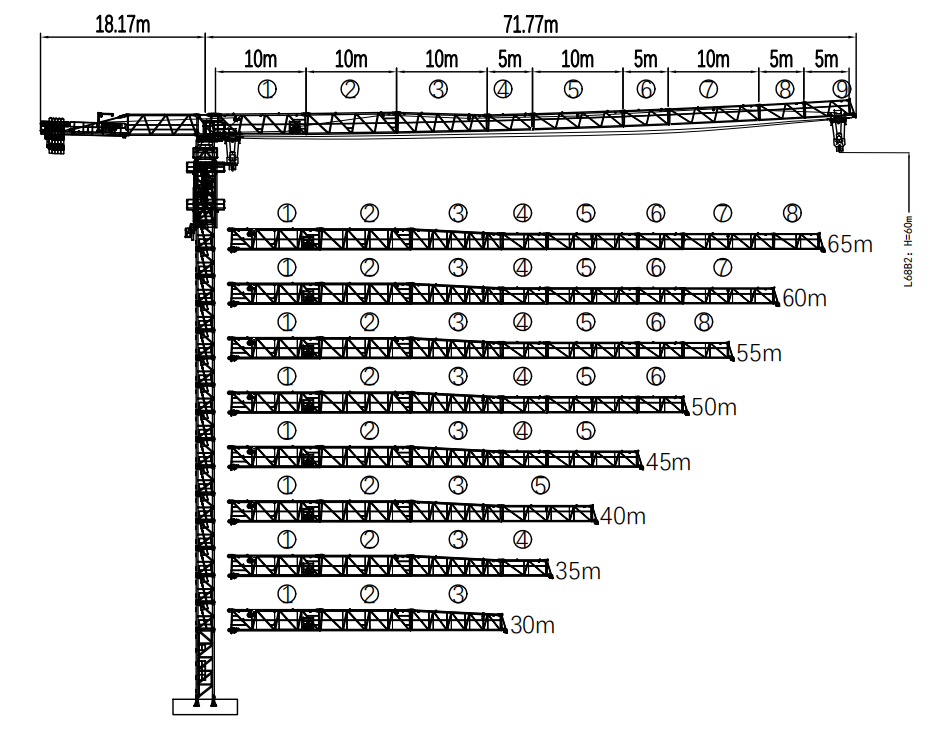

The Steel Structure with Long Lifespan and High Safety The flat-top tower crane is designed without any pull rod so as to reduce the height of the tower top and meet the requirements on different work sites. Especially suitable for disassembling and assembling on restricted construction sites or during the multi-tower cross operation The height difference between tower bodies can be reduced to save much space and cost.

Hook

Increase the weight of the hook, effectively improve the rope lining effect during lifting; adopt new structure to prevent the hook pulley from falling off, completely solve the problem of rope falling off. A movable joint is added between the hook plate and the cross beam to facilitate the hook operation.

Hoisting Mechanism

Speed regulation mode: variable frequency motor speed regulation, The reducer adopts f610 type, and the improvement effect is obvious; Brake: the brake is Jiaozuo brand. Wheels are made of cast steel. Dynamic balance test. Reliable, safe and durable braking; Steel wire rope: long service life, high safety and low maintenance cost

Electric Box

The electrical control system design uses the European advanced frequency conversion + PLC + heavy-duty plug-in electrical control box design system, which is simple, easy to install and disassemble improve work efficiency.

Trolley

A semi-circular protective ring is added to the lower part of the sports car pulley, which fundamentally solve the wire rope groove failure caused by high-speed lifting during the turning process.

Mast section

Overall processing after welding, high connection accuracy, more effortless disassembly; Each section is equipped with a rest platform, which is convenient for disassembling the pins, and the inclined aluminum alloy ladder makes climbing safer and labor-saving.

Cabin

Convenient installation, low operation cost and long service life of products

Telescopic

The frame, lifting cylinder and lifting beam have been assembled before leaving the factory, which can be directly hoisted on site

Hydraulic Jacking Mechanism

The mechanism and the jacking system have been refueled, the wire rope has been wound, and the tower crane is ready for use; saving on-site installation costs.

Safety protection device

The weight limiter and torque limiter adopt a tension ring structure. Lifting, slewing, and trolleying limiter adopts cast aluminum casing with long service life, and adopts products from Guiyang Electric Control Factory.
